变频器、爱德利变频器、ATL变频器、AE2变频器、三相变频器爱德利、AE2三相380V、1.5KW-400KW增强通用型变频器,其安装尺寸外形有三种,下面具体来给大家说说:

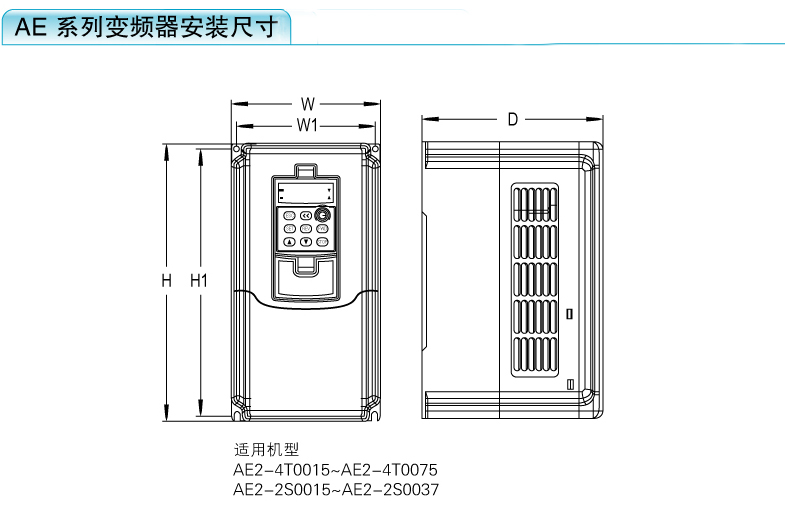

安装尺寸1,适用机型AE2-4T0015-AE2-4T0075(即1.5KW-7.5KW的三相变频器)

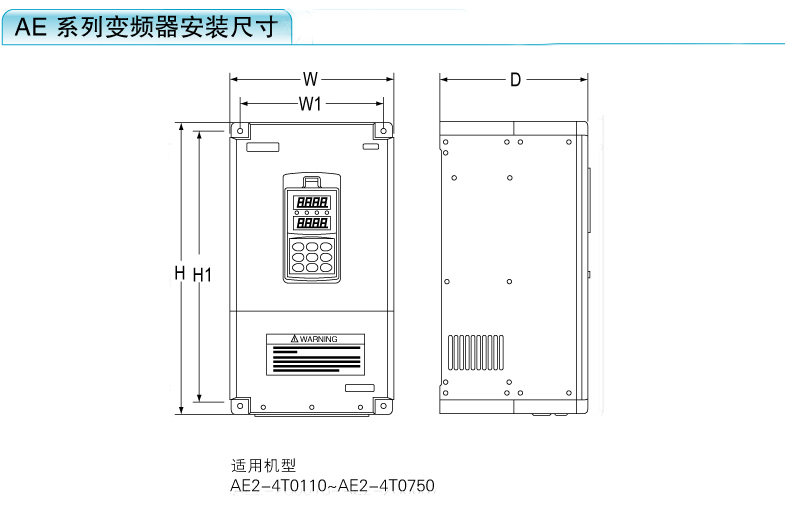

安装尺寸2,适用机型AE2-4T0110-AE2-4T0750(即11KW-75KW的三相变频器)

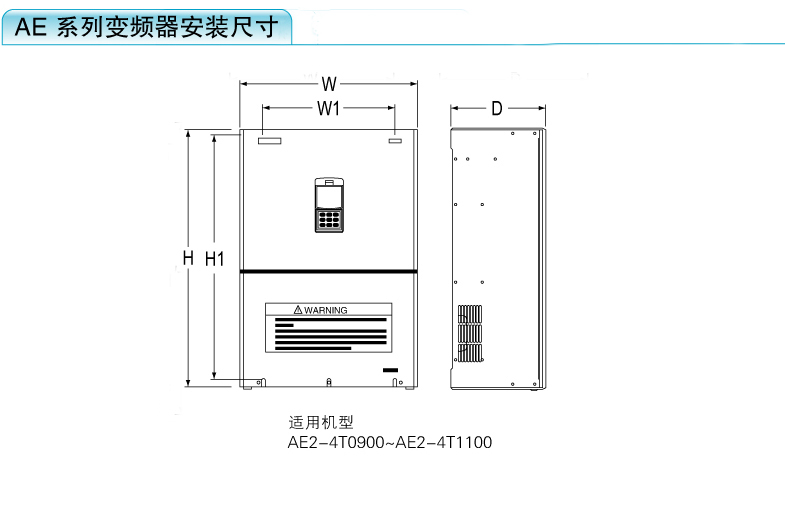

安装尺寸2,适用机型AE2-4T0900-AE2-4T2000(即90KW-200KW的三相变频器)



变频器型号 (三相380V)
|
W1 (mm)
|
W (mm)
|
H1(mm)
|
H(mm)
|
D(mm)
|
螺钉规格
|
AE2-4T0015G
|
123
|
134
|
223
|
234
|
165
|
M4
|
AE2-4T0022G
|
AE2-4T0037G
|
AE2-4T0055G
|
157
|
169
|
282
|
294
|
178
|
M5
|
AE2-4T0075G
|
AE2-4T0110G
|
184
|
204
|
328
|
344
|
199
|
M6
|
AE2-4T0150G
|
200
|
230
|
400
|
420
|
211
|
M6
|
AE2-4T0185G
|
AE2-4T0220G
|
232
|
260
|
450
|
470
|
233
|
M8
|
AE2-4T0300G
|
AE2-4T0370G
|
271
|
300
|
545
|
567
|
250
|
M8
|
AE2-4T0450G
|
AE2-4T0550G
|
344
|
381
|
588
|
614
|
298
|
M8
|
AE2-4T0750G
|
AE2-4T0900G
|
380
|
510
|
710
|
740
|
270
|
M8
|
AE2-4T1100G
|
AE2-4T1320G
|
400
|
580
|
760
|
793
|
300
|
M10
|
AE2-4T1600G
|
AE2-4T1850G
|
550
|
700
|
960
|
1000
|
340
|
M10
|
AE2-4T2000G
|
AE2-4T2200G
|
580
|
730
|
1103
|
1130
|
355
|
M10
|
AE2-4T2500G
|
AE2-4T2800G
|
AE2-4T3150G
|
---
|
1100
|
1490
|
1670
|
515
|
---
|
AE2-4T4000G
|
